Kaichi Nr.: TO-473-16
Brand:KaiChi
Radiator Type:Brazed Aluminum Core
Size In Inch:23-5/8 In X 14-3/4 In X 5/8 In
Size In MM:600mm X 375mm X PA16
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | TO-473-16 |
| Height: | 23-5/8 In./600mm | Width: | 14-3/4 In./375mm |
| Thickness: | 5/8 In./16mm | Inlet Diameter: | 1-3/8 In./35mm |
| Outlet Diameter: | 1-3/8 In./35mm | Tank Material: | Plastic |

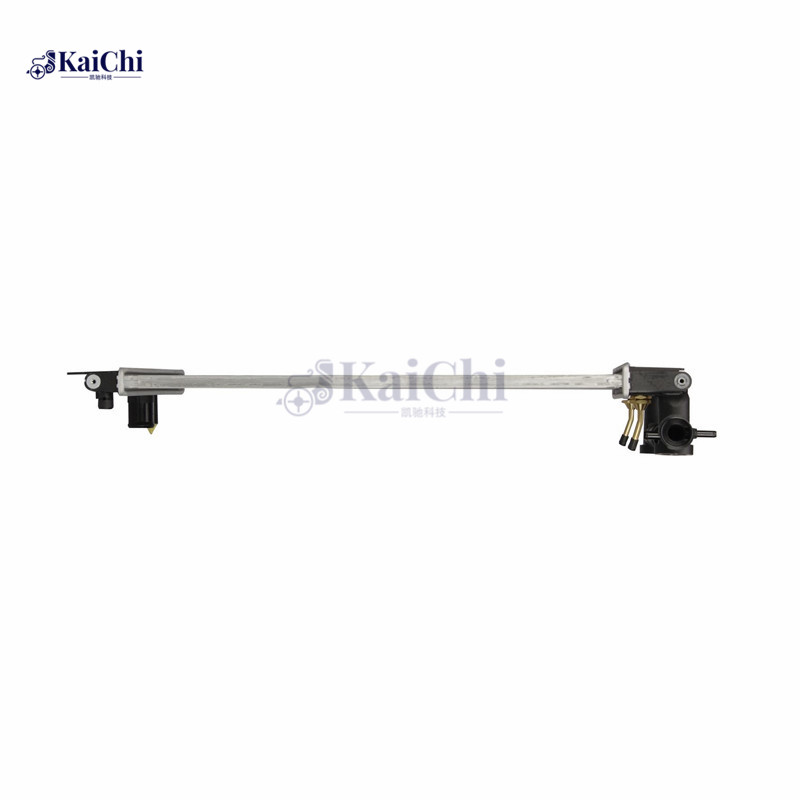

| Core Material: | Aluminum | Trans Oil Cooler: | Brass/Concentric |
| Trans Oil Cooler Central Distance: | 9-13/16 In./250mm | Rows: | 1 |
Applications：
| Pontiac Vibe Base L4 1.8L 2009-2010 |
| Toyota Corolla 50th Anniversary Special Edition L4 1.8L 2017 |
| Toyota Corolla Base L4 1.8L 2009-2019 |
| Toyota Corolla Base L4 2.0L 2019 |
| Toyota Corolla C L4 1.8L 2014-2017 |
| Toyota Corolla CE L4 1.8L 2009-2019 |
| Toyota Corolla L L4 1.8L 2012-2019 |
| Toyota Corolla LE L4 1.8L 2009-2019 |
| Toyota Corolla LE Eco L4 1.8L 2014-2019 |
| Toyota Corolla Le Eco Plus L4 1.8L 2014 |
| Toyota Corolla S L4 1.8L 2009-2016 |
| Toyota Corolla S Plus L4 1.8L 2014-2016 |
| Toyota Corolla SE L4 1.8L 2019 |
| Toyota Corolla SE L4 2.0L 2019 |
| Toyota Corolla SE L4 1.8L 2017-2018 |
| Toyota Corolla SE Plus L4 1.8L 2017-2019 |
| Toyota Corolla Special Edition L4 1.8L 2016 |
| Toyota Corolla XLE L4 1.8L 2009-2019 |
| Toyota Corolla XSE L4 1.8L 2017-2019 |
| Toyota Corolla XSE L4 2.0L 2019 |
| Toyota Matrix Base L4 1.8L 2009-2014 |
Cross Reference:

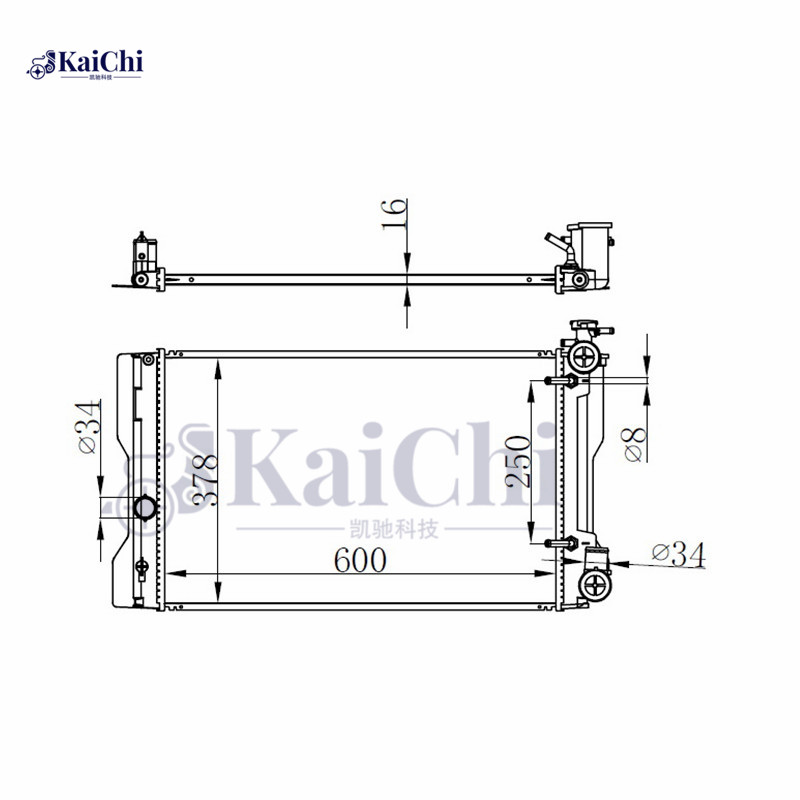

Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| DPI | 13106 |
| SPI | CU13106 |
| APDI | 8013106 |
| TYC | 13106 |
| CSF | 3445 |
| VALEO | 376400 |
| DENSO | 221-3159 |
| Vista-Pro | 438453 |
| NISSENS Number | 606788 |
| Partslink | TO3010323 |
OEM Part Number:
| 164100T030 |
| 164100T031 |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
