Kaichi Nr.: TO-236-22
Brand:KaiChi
Radiator Type:Brazed Aluminum Core

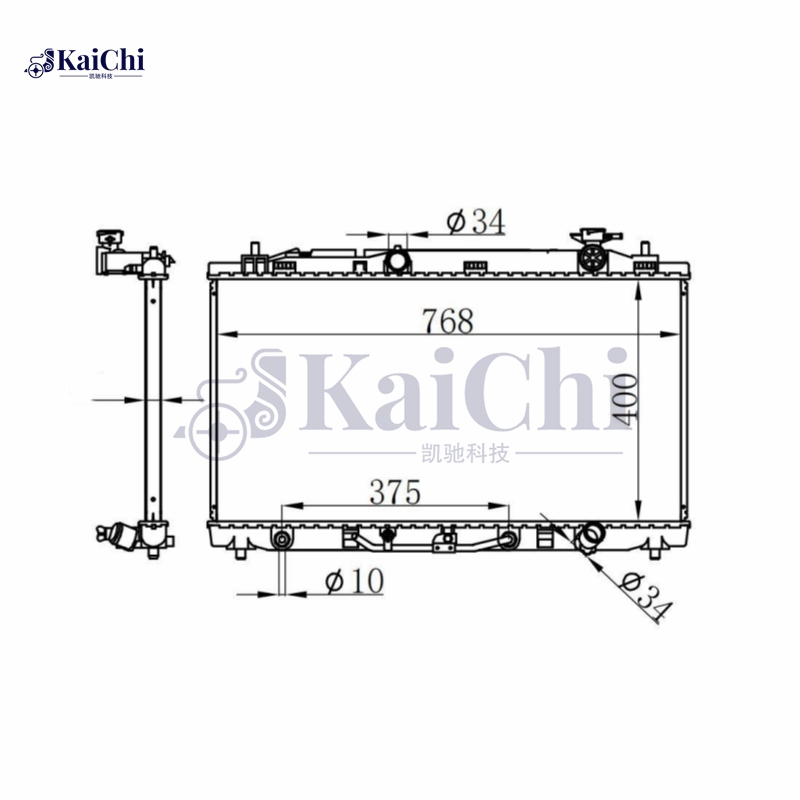

Size In Inch:15-3/4 In X 30-1/4 In X 7/8 In
Size In MM:400mm X 768mm X PA22
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | TO-236-22 |
| Height: | 15-3/4 In./400mm | Width: | 30-1/4 In./768mm |
| Thickness: | 7/8 In./22mm | Inlet Diameter: | 1-5/16 In./34mm |
| Outlet Diameter: | 1-5/16 In./34mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | Brass/Concentric |
| Trans Oil Cooler Central Distance: | 14-3/4 In./375mm | Rows: | 1 |
Applications：
| Toyota Avalon Base V6 3.5L 2011-2012 |
| Toyota Avalon Limited V6 3.5L 2005-2012 |
| Toyota Avalon Touring V6 3.5L 2005-2008 |
| Toyota Avalon XL V6 3.5L 2005-2010 |
| Toyota Avalon XLS V6 3.5L 2005-2012 |
| Toyota Camry LE V6 3.5L 2007-2011 US Built |
| Toyota Camry SE V6 3.5L 2007-2011 US Built |
| Toyota Camry XLE V6 3.5L 2007-2011 US Built |
| Toyota Venza AWD V6 3.5L 2013-2016 |
| Toyota Venza AWD V6 V6 3.5L 2012 |
| Toyota Venza Base V6 3.5L 2009-2015 |
| Toyota Venza LE V6 3.5L 2012-2014 |
| Toyota Venza Limited V6 3.5L 2012-2015 |
| Toyota Venza V6 V6 3.5L 2012 |
| Toyota Venza XLE V6 3.5L 2012-2015 |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| DPI | 2817 |
| SPI | CU2817 |
| APDI | 8012817 |
| TYC | 2817 |
| VALEO | 376163 |
| DENSO | 221-3157 |
| DENSO Europe | DRM50030 |
| Vista-Pro | 434000 |
| NRF | 550145 |
| AVA QUALITY COOLING | TO2473 |
| NISSENS Number | 646812 |
| Partslink | TO3010300 |
OEM Part Number:
| 16400AD010 |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
