Kaichi Nr.: SZ-034-26
Brand:KaiChi
Radiator Type:Brazed Aluminum Core

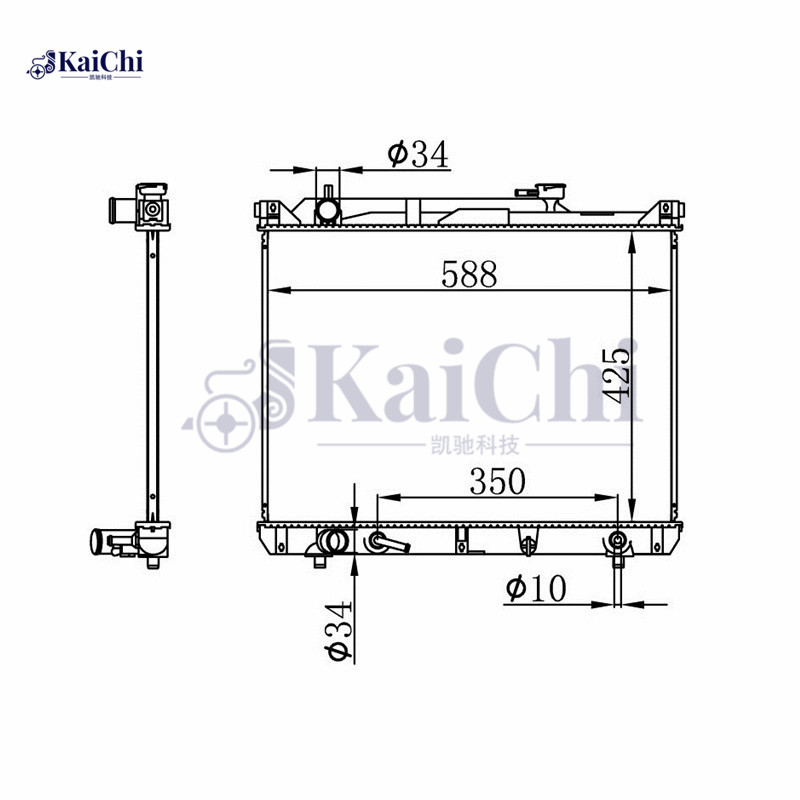

Size In Inch:16-3/4 In x 23-1/8 In x 1 In
Size In MM:425mm x 588mm x PA26
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | SZ-034-26 |
| Height: | 16-3/4 In./425mm | Width: | 23-1/8 In./588mm |
| Thickness: | 1 In./26mm | Inlet Diameter: | 1-5/16 In./34mm |
| Outlet Diameter: | 1-5/16 In./34mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | Brass/Concentric |
| Trans Oil Cooler Central Distance: | 13-3/4 In./350mm | Rows: | 1 |
Applications：
| Suzuki Grand Vitara Base V6 2.5L 2003 |
| Suzuki Grand Vitara EX V6 2.5L 2004-2005 |
| Suzuki Grand Vitara JLS V6 2.5L 2001-2002 |
| Suzuki Grand Vitara JLS Plus V6 2.5L 2001 |
| Suzuki Grand Vitara JLS Plus SE V6 2.5L 2001 |
| Suzuki Grand Vitara JLX V6 2.5L 2001-2002 |
| Suzuki Grand Vitara JLX Plus V6 2.5L 2001 |
| Suzuki Grand Vitara JLX Plus SE V6 2.5L 2001 |
| Suzuki Grand Vitara Limited V6 2.5L 2001-2002 |
| Suzuki Grand Vitara LX V6 2.5L 2004-2005 |
| Suzuki Grand Vitara XL-7 V6 2.7L 2001 |
| Suzuki Grand Vitara XL-7 Limited V6 2.7L 2001 |
| Suzuki Grand Vitara XL-7 Plus V6 2.7L 2001 |
| Suzuki Grand Vitara XL-7 Touring V6 2.7L 2001 |
| Suzuki XL-7 Base V6 2.7L 2002 |
| Suzuki XL-7 Limited V6 2.7L 2002-2003 |
| Suzuki XL-7 Plus V6 2.7L 2002 |
| Suzuki XL-7 Touring V6 2.7L 2002-2003 |
| Suzuki Grand Escudo MK I JA627W 2.7VVTI 1998-2003 |
| Suzuki Grand Vitara XL-7 MK I JA627W 2.7VVTI 2001-2006 |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| DPI | 2430 |
| SPI | CU2430 |
| APDI | 8012430 |
| TYC | 2430 |
| CSF | 3005 |
| VALEO | 734161 |
| DENSO | 221-4800 |
| DENSO Europe | DRM47021 |
| Vista-Pro | 432652 |
| NRF | 53037 |
| AKS DASIS | 320023N |
| AVA QUALITY COOLING | SZ2073 |
| NISSENS Number | 64194A |
| Partslink | SZ3010121 |
OEM Part Number:
| 1770052D10 |
| 1770052D11 |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
