Kaichi Nr.: VW-016-16
Brand:KaiChi
Radiator Type:Brazed Aluminum Core

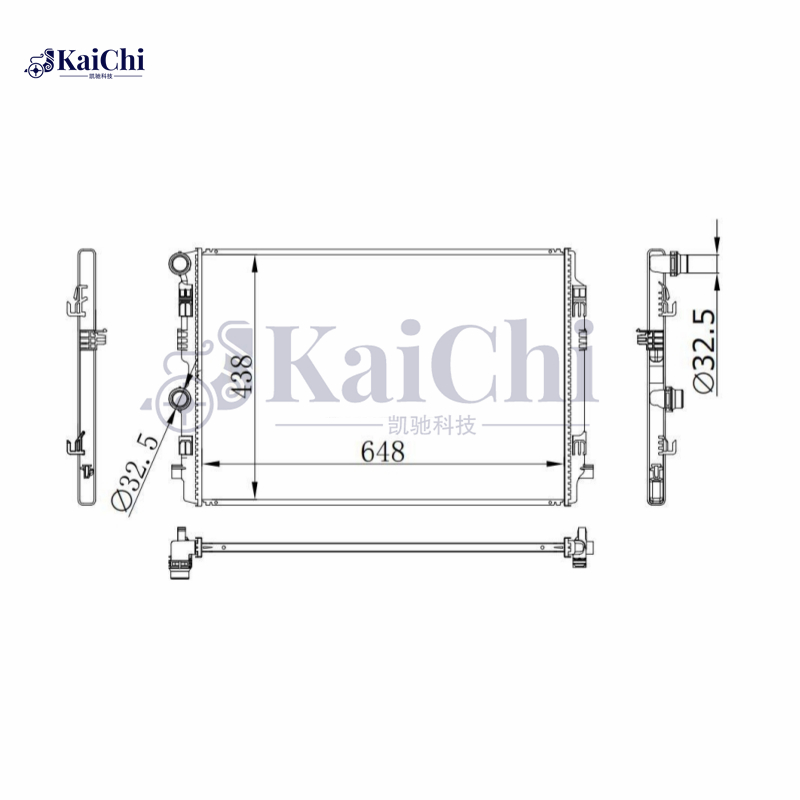

Size In Inch:25-1/2 In X 17-1/4 In X 5/8 In
Size In MM:648mm X 438mm X PA16
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | VW-016-16 |
| Height: | 25-1/2 In./648mm | Width: | 17-1/4 In./438mm |
| Thickness: | 5/8 In./16mm | Inlet Diameter: | 1-1/4 In./32mm |
| Outlet Diameter: | 1-1/4 In./32mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | None |
| Trans Oil Cooler Central Distance: | None | Rows: | 1 |
Applications：
| Volkswagen Polo CHZL/DKLA/DLAC/DXTA 1.0 TSI Bluemotion 2017- |
| Volkswagen Polo CHZJ/DKJA/DKRF 1.0 TSI Bluemotion 2017-2021 |
| Volkswagen Polo DLAA 1.0 TSI Bluemotion 2020- |
| Volkswagen Polo DADA/DPCA 1.5 TSI 2018-2021 |
| Volkswagen T-Cross DLAA 1.0 TSI 2020- |
| Volkswagen T-Cross CHZL/DKLA/DLAC 1.0 TSI 2018- |
| Volkswagen T-Cross DKJA/DKRF 1.0 TSI 2018- |
| Volkswagen T-Cross DADA/DPCA 1.5 TSI 2019- |
| Audi A1 Allstreet 1.0 DLAC 25 TFSI 2022- |
| Audi A1 Allstreet 1.0 DLAA 30 TFSI 2022- |
| Audi A1 Allstreet 1.0 DPCA 35 TFSI 2022- |
| Audi A1 City Carver 1.0 DKLA 25 TFSI 2019- |
| Audi A1 City Carver 1.0 DKJA/DKRF 30 TFSI 2019- |
| Audi A1 City Carver 1.0 DLAA 30 TFSI 2020- |
| Audi A1 City Carver 1.5 DPCA 35 TFSI 2019- |
| Audi A1 Sportback 1.0 DKLA/DLAC 25 TFSI 2018- |
| Audi A1 Sportback 1.0 DKJA/DKRF 30 TFSI 2018- |
| Audi A1 Sportback 1.0 DLAA 30 TFSI 2020- |
| Audi A1 Sportback 1.5 DADA/DPCA 35 TFSI 2018- |
| Seat Arona CHZL/DKLA/DLAC 1.0 TSI 2017- |
| Seat Arona CHZJ/DKJA/DKRF 1.0 TSI 2017- |
| Seat Arona DLAA 1.0 TSI 2020- |
| Seat Ibiza DBYA 1.0 TGI 2017- |
| Seat Ibiza CHZL/DKLA/DLAC 1.0 TGI 2017- |
| Seat Ibiza DLAA 1.0 TGI 2020- |
| Seat Ibiza CHZJ/DKJA/DKRF 1.0 TGI 2017- |
| Skoda Fabia DLAC 1.0 TSI 2021- |
| Skoda Fabia DLAA 1.0 TSI 2021- |
| Skoda Kamiq DKLA/DLAC 1.0 TSI 2019- |
| Skoda Kamiq DKJA/DKRF/DXUA 1.0 TSI 2019- |
| Skoda Kamiq DLAA 1.0 TSI 2020- |
| Skoda Kamiq DADA/DPCA/DXDB 1.5 TSI 2019- |
| Skoda Scala DKLA/DLAC 1.0 TSI 2019- |
| Skoda Scala DKJA/DKRF/DXUA 1.0 TSI 2019- |
| Skoda Scala DLAA 1.0 TSI 2020- |
| Skoda Scala DADA/DPCA/DXDB 1.5 TSI 2019- |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| NRF | 550217 |
| AKS DASIS | 040111N |
| NISSENS Number | 606911 |
OEM Part Number:
| 2Q0121253M |
