Kaichi Nr.: AU-042-32
Brand:KaiChi
Radiator Type:Brazed Aluminum Core
Size In Inch:25-9/16 In X 17-1/4 In X 1-1/4 In

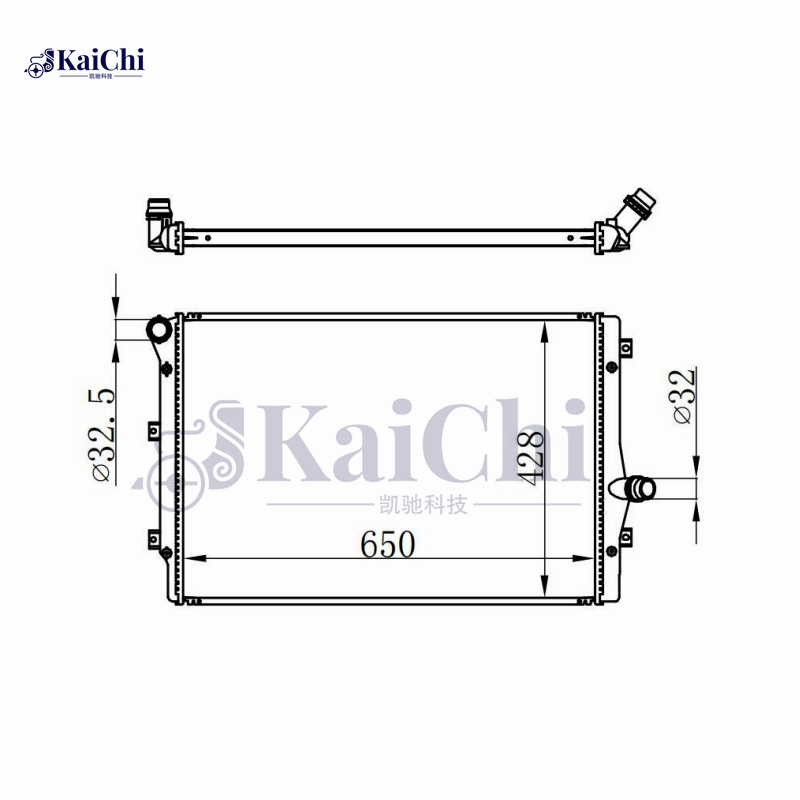

Size In MM:650mm X 438mm X PA32
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | AU-042-32 |
| Height: | 25-9/16 In./650mm | Width: | 17-1/4 In./438mm |
| Thickness: | 1-1/4 In./32mm | Inlet Diameter: | 1-1/4 In./32mm |
| Outlet Diameter: | 1-1/4 In./32mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | None |
| Trans Oil Cooler Central Distance: | None | Rows: | 1 |
Applications：
| Audi A3 Ambiente L4 2.0L 2004-2007 |
| Audi A3 Attraction L4 2.0L 2004-2008 |
| Audi A3 Attraction Plus L4 2.0L 2004-2008 |
| Audi A3 Base L4 2.0L 2006-2008 |
| Audi A3 LE L4 2.0L 2007 |
| Audi A3 S Line L4 2.0L 2006-2008 |
| Audi A3 Sportback L4 2.0L 2013 |
| Audi A3 TDI L4 2.0L 2010-2013 |
| Audi A3 X Aniversario L4 2.0L 2007 |
| Audi A3 Quattro Base L4 2.0L 2004-2007 |
| Audi A3 8P1 AXX/BWA/CAWB/CCZA 2.0 TFSI 2004-2012 |
| Audi A3 8P1 AXX/BWA/CCZA 2.0 TFSI quattro 2004-2012 |
| Audi A3 8P1 CAYB 1.6 TDI 2009-2012 |
| Audi A3 8P1 CAYC 1.6 TDI 2009-2012 |
| Audi A3 8P1 AZV/CBAA/CFFA 2.0 TDI 2003-2012 |
| Audi A3 8P1 BKD/CBAB/CFFB/CLJA 2.0 TDI 16V 2003-2012 |
| Audi A3 8P1 BKD/CBAB/CFFB 2.0 TDI 16V quattro 2004-2012 |
| Audi A3 8P1 BUY 2.0 TDI 2006-2008 |
| Audi A3 8P1 BMN/CBBB/CFGB 2.0 TDI 2006-2012 |
| Audi A3 8P1 BMN/CBBB/CFGB 2.0 TDI quattro 2006-2012 |
| Audi S3 Base L4 2.0L 2008-2012 |
| Audi TT Base L4 1.8L 2014 |
| Audi TT Base L4 2.0L 2011-2014 |
| Audi TT Base L4 2.0L 2007-2013 |
| Audi TT Sport L4 2.0L 2007 |
| Audi TTS Quattro Base L4 2.0L 2011-2015 |
| Audi TT 8J3 CDAA 1.8 TFSI 2008-2014 |
| Audi TT 8J3 BWA 2.0 TFSI 2006-2010 |
| Audi TT 8J3 CDLA/CDMA 2.0 TTS quattro 2008-2014 |
| Audi TT 8J3 CDLB 2.0 TTS quattro 2008-2014 |
| Audi TT 8J3 CBBB/CFGB 2.0 TDI quattro 2008-2014 |
| Seat Altea (Mexico) Reference L4 2.0L 2006 |
| Seat Altea (Mexico) Stylance L4 2.0L 2005-2006 |
| Seat Altea XL (Mexico) Stylance L4 2.0L 2008 |
| Seat Altea 5P1 BWA 2.0 TFSI 2006-2006 |
| Seat Altea 5P1 CAYB 1.6 TDI 2010- |
| Seat Altea 5P1 CAYC 1.6 TDI 2009- |
| Seat Altea 5P1 AZV 2.0 TDI 2004-2009 |
| Seat Altea 5P1 BKD/CFHC 2.0 TDI 16V 2004- |
| Seat Altea 5P1 BMN/CEGA 2.0 TDI 2006- |
| Seat Freetrack (Mexico) Style L4 2.0L 2010-2013 |
| Seat Leon (Mexico) 2.0T FSI L4 2.0L 2007-2009 |
| Seat Leon (Mexico) Cupra L4 2.0L 2008-2012 |
| Seat Leon (Mexico) Cupra Copa Edition L4 2.0L 2009 |
| Seat Leon (Mexico) FR L4 2.0L 2010-2013 |
| Seat Leon (Mexico) Reference L4 2.0L 2007 |
| Seat Leon (Mexico) Stylance L4 2.0L 2006-2008 |
| Seat Leon (Mexico) Super Copa L4 2.0L 2013 |
| Seat Leon 1P1 BWA 2.0 TFSI 2005-2009 |
| Seat Leon 1P1 BWJ/CDLD 2.0 TFSI 2006-2011 |
| Seat Leon 1P1 CDLA 2.0 Cupra R 2009-2012 |
| Seat Leon 1P1 CAYB 1.6 TDI 2010-2012 |
| Seat Leon 1P1 CAYC 1.6 TDI 2010-2012 |
| Seat Leon 1P1 AZV 2.0 TDI 2005-2010 |
| Seat Leon 1P1 BKD/CFHC/CLCB 2.0 TDI 16V 2005-2012 |
| Seat Leon 1P1 BMN/CEGA/CFJA 2.0 TDI 2006-2012 |
| Seat Toledo (Mexico) Reference L4 2.0L 2006 |
| Seat Toledo (Mexico) Stylance L4 2.0L 2006 |
| Seat Toledo III 5P2 BWA 2.0 TFSI 2005-2009 |
| Seat Toledo III 5P2 AZV 2.0 TDI 2004-2009 |
| Seat Toledo III 5P2 BMM 2.0 TDI 2005-2009 |
| Seat Toledo III 5P2 BDK 2.0 TDI 16V 2004-2009 |
| Seat Toledo III 5P2 BMN/CEGA 2.0 TDI 2006-2009 |
| Skoda Octavia II 1Z3 CCSA/CMXA1.6 MultiFuel 2008-2013 |
| Skoda Octavia II 1Z3 BWA/CCZA 2.0 TFSI 2005-2013 |
| Skoda Octavia II 1Z3 CAYC 1.6 TDI 2009-2013 |
| Skoda Octavia II 1Z3 CFHF/CLCA 2.0 TDI 2010-2013 |
| Skoda Octavia II 1Z3 AZV 2.0 TDI 2004-2010 |
| Skoda Octavia II 1Z3 BKD/CFHC/CLCB 2.0 TDI 16V 2004-2013 |
| Skoda Octavia II 1Z3 BMN/CEGA 2.0 TDI RS 2006-2013 |
| Volkswagen Beetle Comfortline TDI L4 2.0L 2014-2015 |
| Volkswagen Beetle Highline TDI L4 2.0L 2014 |
| Volkswagen Beetle TDI L4 2.0L 2013-2015 |
| Volkswagen Beetle 5C1/5C2 CAYC 1.6 TDI 2011-2016 |
| Volkswagen Beetle 5C1/5C2 CFFB/CJAA 2.0 TDI 2011-2016 |
| Volkswagen Eos 2.0T L4 2.0L 2007-2008 |
| Volkswagen Eos Base L4 2.0L 2007 |
| Volkswagen Eos Comfortline L4 2.0L 2009 |
| Volkswagen Eos Komfort L4 2.0L 2008-2009 |
| Volkswagen Eos Lux L4 2.0L 2008-2009 |
| Volkswagen Eos Trendline L4 2.0L 2009 |
| Volkswagen Eos Turbo L4 2.0L 2008 |
| Volkswagen Eos 1F7/1F8 BWA/CAWB/CBFA/CCZA 2.0 TFSI 2006-2015 |
| Volkswagen Eos 1F7/1F8 CFFA 2.0 TDI 2010-2015 |
| Volkswagen Eos 1F7/1F8 CBAB/CFFB 2.0 TDI 16V 2008-2015 |
| Volkswagen Golf Comfortline TDI L4 2.0L 2012-2014 |
| Volkswagen Golf Highline TDI L4 2.0L 2012-2014 |
| Volkswagen Golf TDI L4 2.0L 2010-2014 |
| Volkswagen Golf TDI Comfortline L4 2.0L 2011 |
| Volkswagen Golf TDI Highline L4 2.0L 2011 |
| Volkswagen Golf Trendline TDI L4 2.0L 2014 |
| Volkswagen GTI Base L4 2.0L 2007 |
| Volkswagen GTI Fahrenheit L4 2.0L 2007 |
| Volkswagen Jetta 2.0T L4 2.0L 2006-2007 |
| Volkswagen Jetta Comfort TDI L4 2.0L 2014 |
| Volkswagen Jetta Comfortline TDI L4 2.0L 2012 |
| Volkswagen Jetta GLI L4 2.0L 2006-2007 |
| Volkswagen Jetta Highline TDI L4 2.0L 2012,2014 |
| Volkswagen Jetta TDI L4 2.0L 2009-2014 |
| Volkswagen Jetta TDI Comfortline L4 2.0L 2011 |
| Volkswagen Jetta TDI Cup Edition L4 2.0L 2010 |
| Volkswagen Jetta TDI Highline L4 2.0L 2011 |
| Volkswagen Jetta TDI Premium L4 2.0L 2014 |
| Volkswagen Jetta IV 162/163/AV3/AV2 CLCA/CUUA 2.0 TDI 2010- |
| Volkswagen Jetta IV 162/163/AV3/AV2 CFFB/CFHC/CJAA/CLCB 2.0 TDI 2011- |
| Volkswagen Passat B6 3C2 AXX/BPY/BWA/CAWB/CBFA/CCTA/CCZA 2.0 TFSI 2005-2010 |
| Volkswagen Passat B6 3C2 CAYC 1.6 TDI 2009-2010 |
| Volkswagen Passat B6 3C2 CBDC 2.0 TDI 2008-2010 |
| Volkswagen Passat B6 3C2 BWV 2.0 TDI 2005-2007 |
| Volkswagen Passat B6 3C2 BVE 2.0 TDI 2005-2006 |
| Volkswagen Passat B6 3C2 BMA/CBAA 2.0 TDI 2005-2010 |
| Volkswagen Passat B6 3C2 BKP/CBAB 2.0 TDI 16V 2005-2010 |
| Volkswagen Passat B6 3C2 BKP/CBAB 2.0 TDI 16V 4motion 2005-2010 |
| Volkswagen Passat B6 3C2 CBAC 2.0 BlueTDI 2009-2010 |
| Volkswagen Passat B6 3C2 BUZ 2.0 TDI 2005-2009 |
| Volkswagen Passat B6 3C2 BMR/CBBB 2.0 TDI 2005-2010 |
| Volkswagen Passat B6 3C2 CBBB 2.0 TDI 4motion 2009-2010 |
| Volkswagen Caddy III MPV 2KB/2KJ/2CB/2CJ CAYE 1.6 TDI 2010-2015 |
| Volkswagen Caddy III MPV 2KB/2KJ/2CB/2CJ CAYD 1.6 TDI 2010-2015 |
| Volkswagen Caddy III MPV 2KB/2KJ/2CB/2CJ CLCA 2.0 TDI 2010-2015 |
| Volkswagen Caddy III MPV 2KB/2KJ/2CB/2CJ CFHF 2.0 TDI 4motion 2010-2015 |
| Volkswagen Caddy III MPV 2KB/2KJ/2CB/2CJ CFH/CLCB 2.0 TDI 16V 2010-2015 |
| Volkswagen Caddy III MPV 2KB/2KJ/2CB/2CJ CFH 2.0 TDI 16V 4motion 2010-2015 |
| Volkswagen Caddy III MPV 2KB/2KJ/2CB/2CJ CFJA 2.0 TDI 2012-2015 |
| Volkswagen Caddy IV MPV SAB/SAJ CAYE 1.6 TDI 2015-2017 |
| Volkswagen Caddy IV MPV SAB/SAJ CAYD 1.6 TDI 2015-2020 |
| Volkswagen Caddy IV MPV SAB/SAJ CUUF/DFSF 2.0 TDI 2015-2020 |
| Volkswagen Caddy IV MPV SAB/SAJ CUUD/DFSD 2.0 TDI 2015-2020 |
| Volkswagen Caddy IV MPV SAB/SAJ CFHF/CLCA 2.0 TDI 4motion 2015-2020 |
| Volkswagen Touran 1T3 CAYC 1.6 TDI 2010-2015 |
| Volkswagen Touran 1T3 CFHF/CLCA 2.0 TDI 2010-2015 |
| Volkswagen Touran 1T3 CFHC 2.0 TDI 2010-2015 |
| Volkswagen Touran 1T3 CFJA 2.0 TDI 2010-2013 |
| Volkswagen Touran 1T3 CFJB 2.0 TDI 2013-2015 |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| DPI | 2822 |
| SPI | CU2822 |
| APDI | 8012822 |
| TYC | 2822 |
| CSF | 3459 |
| VALEO Europe | 734333 |
| DENSO Europe | DRM32017 |
| Vista-Pro | 434060 |
| NRF | 53425 |
| AKS DASIS | 040026N |
| AVA QUALITY COOLING | VN2208 |
| NISSENS Number | 65281A |
| Partslink | VW3010149 |
OEM Part Number:
| 1K0121251AB |
| 1K0121251BK |
| 1K0121251DD |
| 1K0121251DM |
| 1K0121251EH |
| 1K0121251N |
| 3C0121251AR |
| 3C0121253AL |
| 3C0121253AR |
| 3C0121253K |
| 3C0121253Q |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
