Kaichi Nr.: GM-076-26
Brand:KaiChi
Radiator Type:Brazed Aluminum Core
Size In Inch:26-3/4 In X 14-1/8 In X 1 In
Size In MM:680mm X 358mm X PA26
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | GM-076-26 |

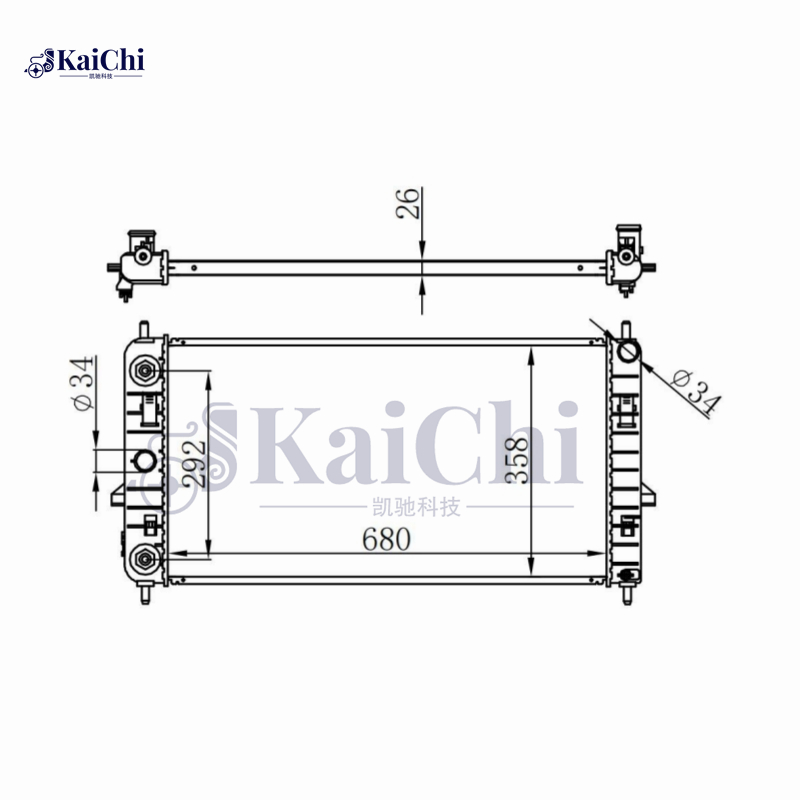

| Height: | 26-3/4 In./680mm | Width: | 14-1/8 In./358mm |
| Thickness: | 1 In./26mm | Inlet Diameter: | 1-5/16 In./34mm |
| Outlet Diameter: | 1-5/16 In./34mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | Brass/Concentric Or Plated |
| Trans Oil Cooler Central Distance: | 11-1/2 In./292mm | Rows: | 1 |
Applications：
| Chevrolet Cobalt Base L4 2.2L 2005,2010 |
| Chevrolet Cobalt LS L4 2.2L 2005-2010 |
| Chevrolet Cobalt LT L4 2.2L 2005-2010 |
| Chevrolet Cobalt LTZ L4 2.2L 2006-2007 |
| Chevrolet Cobalt SS L4 2.0L 2005-2010 |
| Chevrolet Cobalt SS L4 2.4L 2006-2007 |
| Chevrolet Cobalt Sport L4 2.2L 2008 |
| Pontiac G5 Basico L4 2.2L 2007-2009 |
| Pontiac G5 LS L4 2.2L 2007-2009 |
| Pontiac G5 SE L4 2.2L 2007-2010 |
| Pontiac G5 GT L4 2.4L 2007-2010 |
| Pontiac G5 Base L4 2.2L 2007-2010 |
| Pontiac Pursuit Base L4 2.2L 2005-2006 |
| Pontiac Pursuit SE L4 2.2L 2006 |
| Pontiac Pursuit GT L4 2.4L 2006 |
| Saturn Ion 1 L4 2.2L 2003-2005 |
| Saturn Ion 2 L4 2.2L 2003-2007 |
| Saturn Ion 3 L4 2.2L 2003-2007 |
| Saturn Ion 3 L4 2.4L 2006-2007 |
| Saturn Ion Red Line L4 2.0L 2004-2007 |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| DPI | 2608 |
| DPI | 2775 |
| DPI | 13042 |
| SPI | CU2608 |
| APDI | 8012608 |
| TYC | 2608 |
| CSF | 3306 |
| DENSO | 221-9021 |
| NRF | 56014 |
| NISSENS Number | 69461 |
| Partslink | GM3010473 |
| Partslink | GM3010489 |
OEM Part Number:
| 22717621 |
| 22731217 |
| 52381630 |
| 52407483 |
| 52482167 |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
