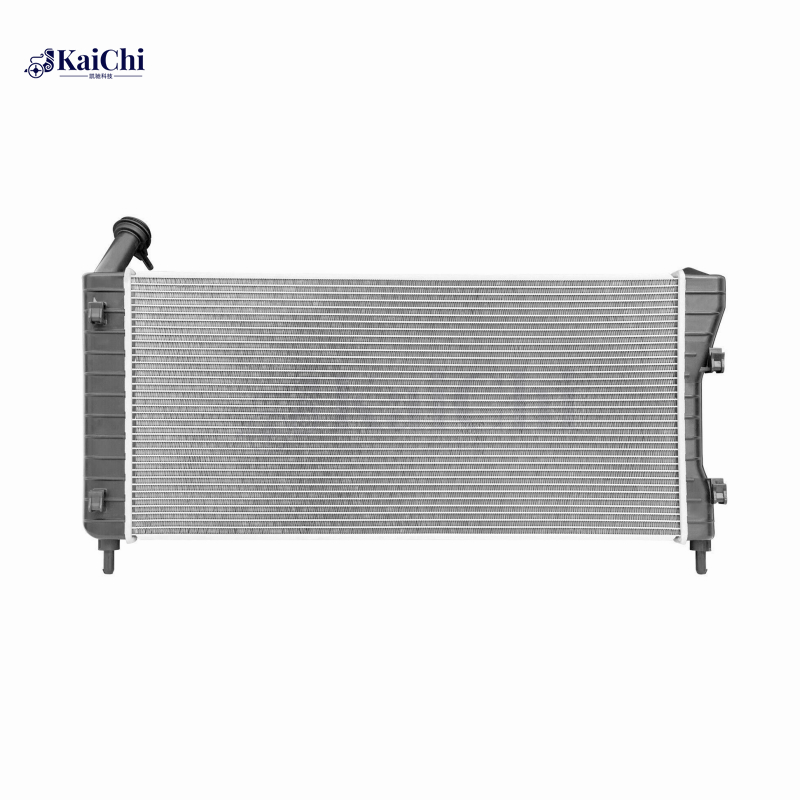

Kaichi Nr.: GM-160-16
Brand:KaiChi
Radiator Type:Brazed Aluminum Core

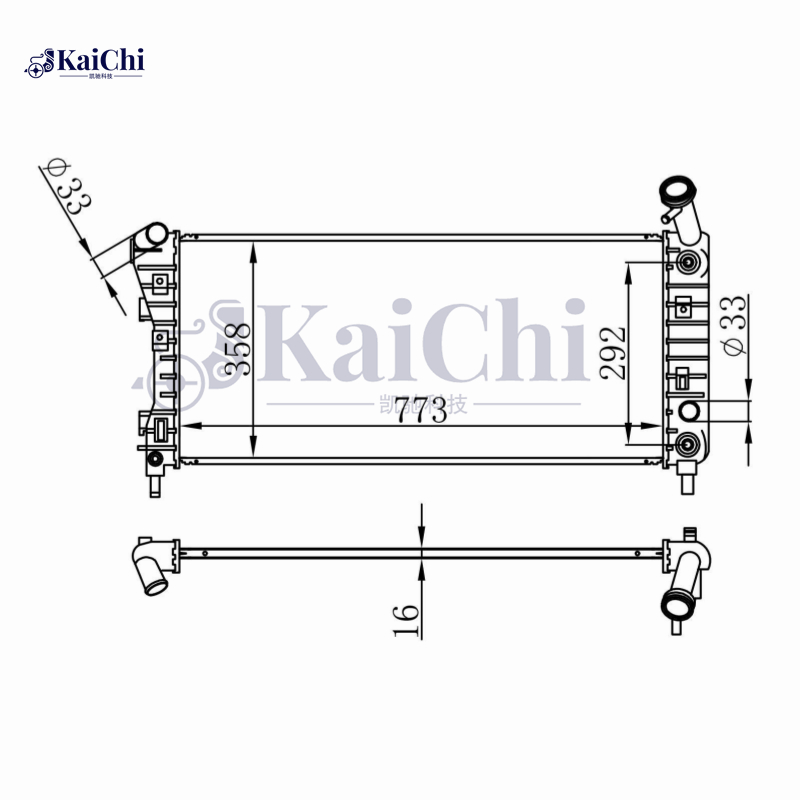

Size In Inch:30-7/16 In X 14-1/8 In X 5/8 In
Size In MM:773mm X 358mm X PA16
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | GM-160-16 |
| Height: | 30-7/16 In./773mm | Width: | 14-1/8 In./358mm |
| Thickness: | 5/8 In./16mm | Inlet Diameter: | 1-5/16 In./33mm |
| Outlet Diameter: | 1-5/16 In./33mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | Brass/Concentric Or Plated |
| Trans Oil Cooler Central Distance: | 11-1/2 In./292mm | Rows: | 1 |
Applications：
| Buick Allure (Canada) CX V6 3.8L 2005-2009 |
| Buick Allure (Canada) CXL V6 3.8L 2005-2009 |
| Buick LaCrosse CX V6 3.8L 2005-2009 |
| Buick LaCrosse CXL V6 3.8L 2005-2009 |
| Chevrolet Impala Base V6 3.4L 2004-2005 |
| Chevrolet Impala Base V6 3.8L 2004-2005 |
| Chevrolet Impala LS V6 3.8L 2004-2005 |
| Chevrolet Impala Police V6 3.8L 2004-2005 |
| Chevrolet Impala SS V6 3.8L 2004-2005 |
| Chevrolet Monte Carlo LS V6 3.4L 2004-2005 |
| Chevrolet Monte Carlo LT V6 3.8L 2005 |
| Chevrolet Monte Carlo SS V6 3.8L 2004-2005 |
| Pontiac Grand Prix Base V6 3.8L 2005-2008 |
| Pontiac Grand Prix GT V6 3.8L 2005 |
| Pontiac Grand Prix GT1 V6 3.8L 2004 |
| Pontiac Grand Prix GT2 V6 3.8L 2004 |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| DPI | 2710 |
| SPI | CU2710 |
| APDI | 8012710 |
| TYC | 2710 |
| VALEO | 700784 |
| DENSO | 221-9013 |
| Vista-Pro | 432676 |
| Partslink | GM3010431 |
OEM Part Number:
| 10324030 |
| 15140506 |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
