Kaichi Nr.: IS-036-26
Brand:KaiChi

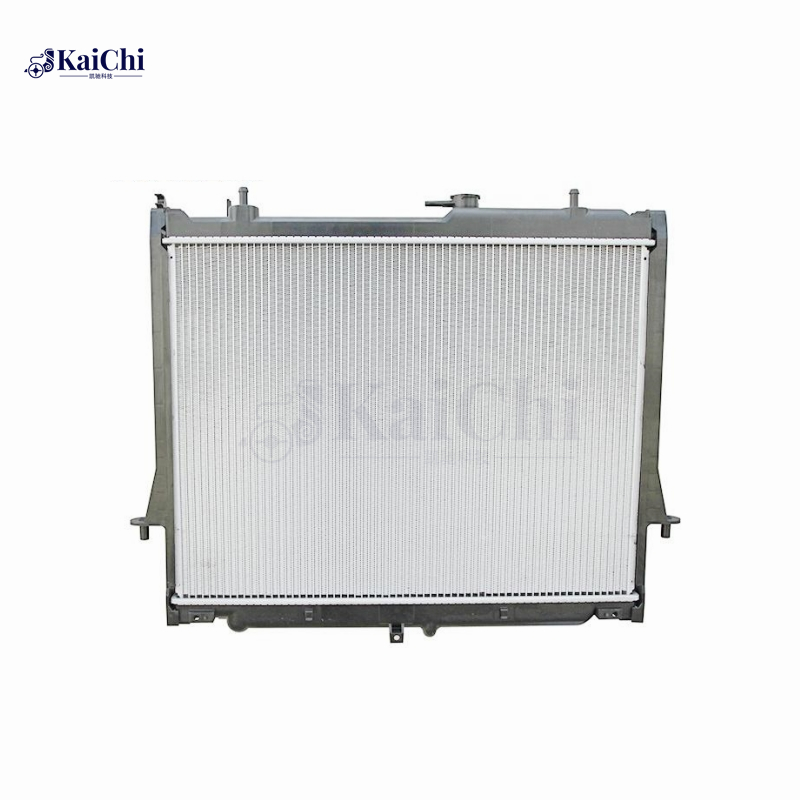

Radiator Type:Brazed Aluminum Core
Size In Inch:19-11/16 In X 25-1/2 In X 1 In
Size In MM:500mm X 648mm X PA26
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | IS-036-26 |

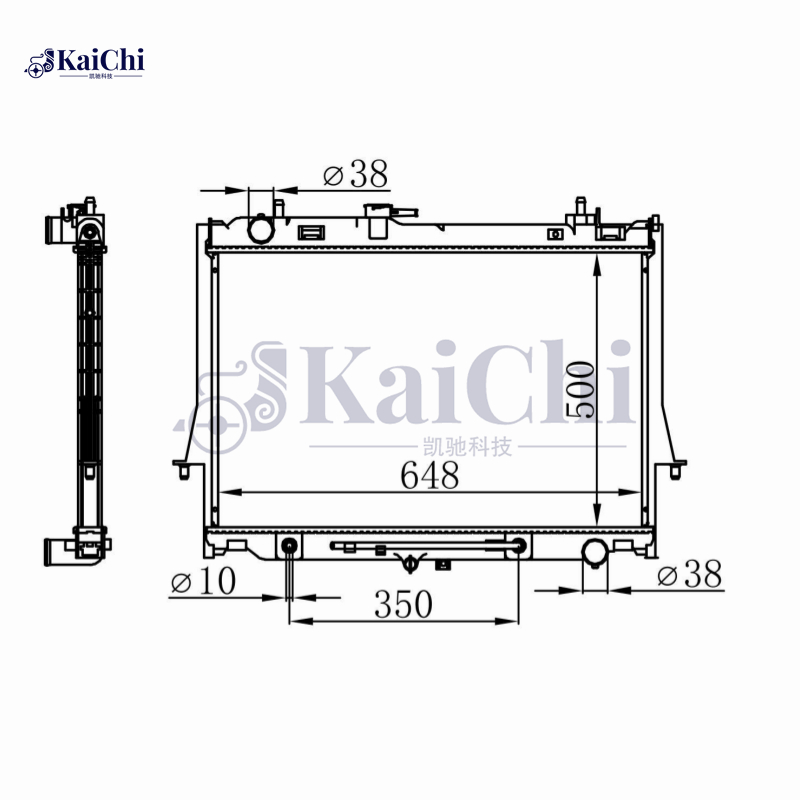

| Height: | 19-11/16 In./500mm | Width: | 25-1/2 In./648mm |
| Thickness: | 1 In./26mm | Inlet Diameter: | 1-1/2 In./38mm |
| Outlet Diameter: | 1-1/2 In./38mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | Brass/Concentric |
| Trans Oil Cooler Central Distance: | 13-3/4 In./350mm | Rows: | 1 |
Applications：
| Isuzu D-Max 2.5TDi Twin Turbo 2012-2018 |
| Isuzu D-Max 2.5 DDI 4WD Turbo 2012-2018 |
| Isuzu D-Max TFS/TFR 3.0 CRDi Turbo 2012-2018 |
| Isuzu D-Max TFS/TFR 3.0 CRDi 4x4 Turbo 2012-2018 |
| Isuzu D-Max TFS/TFR Platform/Chassis 3.0 CRDi Turbo 2012-2021 |
| Isuzu D-Max TFS/TFR Platform/Chassis 3.0 CRDi 4x4 Turbo 2012-2021 |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
OEM Part Number:
| 8981929182 |
| 8981943932 |
| 8982362011 |
