Kaichi Nr.: MI-230-16
Brand:KaiChi

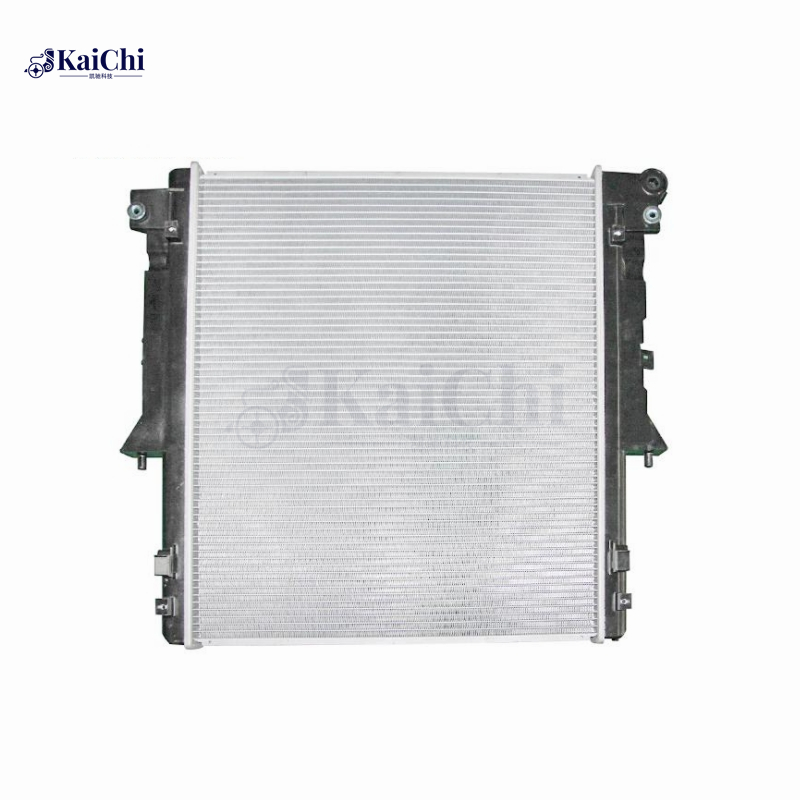

Radiator Type:Brazed Aluminum Core
Size In Inch:20-11/16 In X 25-1/4 In X 5/8 In
Size In MM:525mm X 642mm X PA16
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:

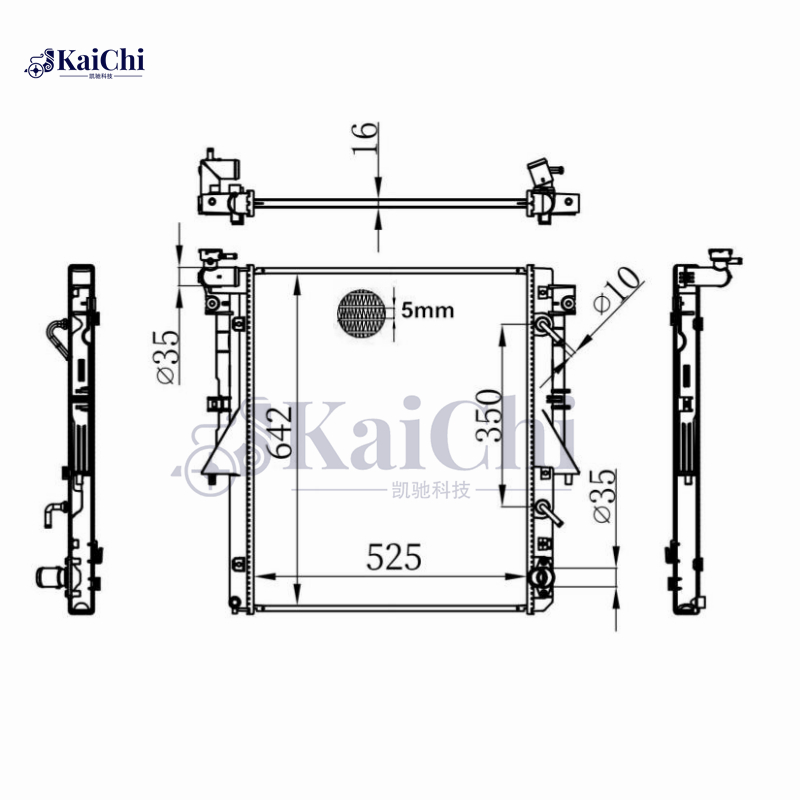

| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | MI-230-16 |
| Height: | 20-11/16 In./525mm | Width: | 25-1/4 In./642mm |
| Thickness: | 5/8 In./16mm | Inlet Diameter: | 1-3/8 In./35mm |
| Outlet Diameter: | 1-3/8 In./35mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | Brass/Concentric |
| Trans Oil Cooler Central Distance: | 13-3/4 In./350mm | Rows: | 1 |
Applications：
| Mitsubishi L200/Triton KJ/KK/KL 2.2 DI-D 4WD 2019- |
| Mitsubishi L200/Triton KJ/KK/KL 2.4 DI-D KJ0T 2015- |
| Mitsubishi L200/Triton KJ/KK/KL 2.4 DI-D 4WD KJ0T 2015- |
| Mitsubishi L200/Triton KJ/KK/KL 2.4 DI-D 4WD KL1T 2014- |
| Fiat Fullback Pickup 502/503 2.4 D KT0T 2016- |
| Fiat Fullback Pickup 502/503 2.4 D 4x4 KT0T 2016- |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| DENSO Europe | DRM45055 |
| NRF | 560009 |
| AVA QUALITY COOLING | MT2280 |
| NISSENS Number | 606548 |
OEM Part Number:
| 1350A809 |
| 6000605264 |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
