Kaichi Nr.: SZ-059-26
Brand:KaiChi
Radiator Type:Brazed Aluminum Core
Size In Inch:16-3/4 In X 20-3/8 In X 1 In
Size In MM:425mm X 518mm X PA26
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | SZ-059-26 |

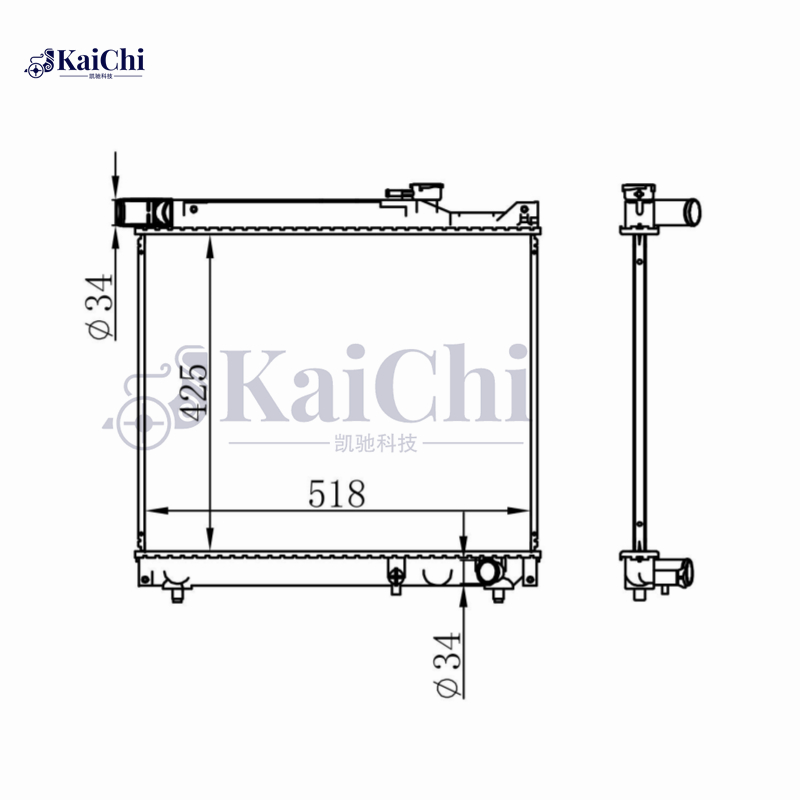

| Height: | 16-3/4 In./425mm | Width: | 20-3/8 In./518mm |
| Thickness: | 1 In./26mm | Inlet Diameter: | 1-5/16 In./34mm |
| Outlet Diameter: | 1-5/16 In./34mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | None |
| Trans Oil Cooler Central Distance: | None | Rows: | 1 |
Applications：
| Suzuki Grand Vitara MK I FT HT SQ420D 2.0HDI 110 4X4 2001-2005 Manual |
| Suzuki Grand Vitara MK I FT HT SQ420D 2.0TD 4X4 1998-2005 Manual |
| Suzuki Vitara/Escudo ET TA TD SV420D 2.0TD 4X4 1994-1998 Manual |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| VALEO Europe | 701247 |
| DENSO Europe | DRM47037 |
| AKS DASIS | 320046N |
| AVA QUALITY COOLING | SZ2106 |
| NISSENS Number | 64165 |
OEM Part Number:
| 0440078E20 |
| 1770068D00 |
| 1770078E20 |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
