Kaichi Nr.: PE-006-22
Brand:KaiChi
Radiator Type:Brazed Aluminum Core

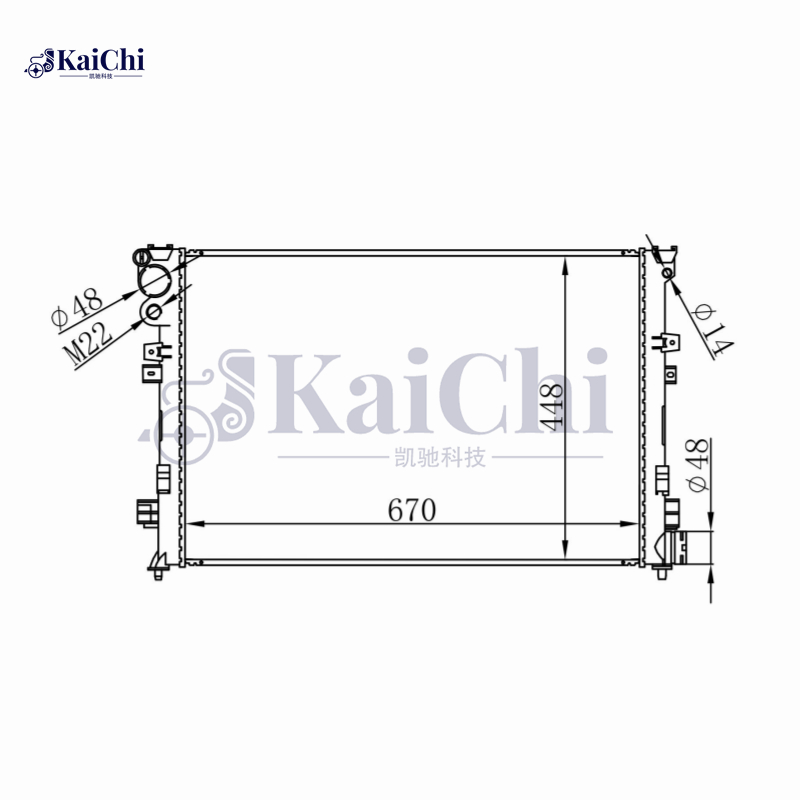

Size In Inch:26-3/8 In X 17-5/8 In X 7/8 In
Size In MM:670mm X 448mm X PA22
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Brazed Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | PE-006-22 |
| Height: | 26-3/8 In./670mm | Width: | 17-5/8 In./448mm |
| Thickness: | 7/8 In./22mm | Inlet Diameter: | 1-7/8 In./48mm |
| Outlet Diameter: | 1-7/8 In./48mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | None |
| Trans Oil Cooler Central Distance: | None | Rows: | 1 |
Applications：
| Peugeot 806 221 1.8L 1995-2002 |
| Peugeot 806 221 1.9TD 1995-2002 |
| Peugeot 806 221 2.0L 16V 1998-2002 |
| Peugeot 806 221 2.0 HDI 16V 1999-2002 |
| Peugeot 806 221 2.0 HDI 1999-2002 |
| Peugeot 806 221 2.0 Turbo 1994-2002 |
| Peugeot 806 221 2.0L 1994-2002 |
| Peugeot 806 221 2.1TD 12V 1996-1999 |
| Peugeot Expert 224 1.6L 1996-2000 |
| Peugeot Expert 224 1.8L 1996-2000 |
| Peugeot Expert 224 1.9D 1996-2006 |
| Peugeot Expert 224 1.9TD 1996-2000 |
| Peugeot Expert 224 2.0 HDI 16V 2000-2006 |
| Peugeot Expert 224 2.0 HDI 2000-2006 |
| Peugeot Expert 224 2.0L 2000-2006 |
| Peugeot Expert Platform/Chassis 223 1.6L 1996-2000 |
| Peugeot Expert Platform/Chassis 223 1.9D 1996-2001 |
| Peugeot Expert Platform/Chassis 223 1.9TD 1996-2000 |
| Peugeot Expert Platform/Chassis 223 2.0 HDi 2000-2006 |
| Peugeot Expert Van 222 1.6L 1996-2000 |
| Peugeot Expert Van 222 1.8L 1996-2000 |
| Peugeot Expert Van 222 1.9D 70 1998-2006 |
| Peugeot Expert Van 222 1.9D 1996-1998 |
| Peugeot Expert Van 222 1.9TD 1996-2000 |
| Peugeot Expert Van 222 2.0 HDI 2000-2006 |
| Peugeot Expert Van 222 2.0L 2002-2006 |
| Citroen Evasion MPV 22 U6 1.8L 1996-2002 |
| Citroen Evasion MPV 22 U6 1.9TD 1994-2002 |
| Citroen Evasion MPV 22 U6 2.0L 16V 1998-2002 |
| Citroen Evasion MPV 22 U6 2.0HDI 16V 1999-2002 |
| Citroen Evasion MPV 22 U6 2.0HDI 1999-2002 |
| Citroen Evasion MPV 22 U6 2.0L Turbo C.T. 1994-2002 |
| Citroen Evasion MPV 22 U6 2.0L 1994-2002 |
| Citroen Evasion MPV 22 U6 2.1TD 1996-2002 |
| Citroen Jumpy U6U 1.6L 1995-2000 |
| Citroen Jumpy U6U 1.9D 70 1998-2003 |
| Citroen Jumpy U6U 1.9D 1995-1998 |
| Citroen Jumpy U6U 1.9TD 1995-2003 |
| Citroen Jumpy U6U 2.0 HDi 110 2000-2006 |
| Citroen Jumpy U6U 2.0 HDi 95 1999-2006 |
| Citroen Jumpy U6U 2.0i 2000-2006 |
| Citroen Jumpy U6U 2.0L 2000-2006 |
| Citroen Jumpy Platform/Chassis BU BV BW BX 1.9TD 1999-2006 |
| Citroen Jumpy Platform/Chassis BU BV BW BX 2.0 HDi 110 16V 2003-2006 |
| Citroen Jumpy Platform/Chassis BU BV BW BX 2.0 HDi 110 2003-2006 |
| Citroen Jumpy Platform/Chassis BU BV BW BX 2.0 HDi 95 1999-2006 |
| Citroen Jumpy Platform/Chassis BU BV BW BX 2.0L 2003-2006 |
| Citroen Jumpy Van BS BT BY BZ 1.6i 1995-2000 |
| Citroen Jumpy Van BS BT BY BZ 1.9D 70 1998-2006 |
| Citroen Jumpy Van BS BT BY BZ 1.9DT 1995-2000 |
| Citroen Jumpy Van BS BT BY BZ 1.9D 1995-1998 |
| Citroen Jumpy Van BS BT BY BZ 1.9TD 1995-2000 |
| Citroen Jumpy Van BS BT BY BZ 2.0 HDi 110 2001-2006 |
| Citroen Jumpy Van BS BT BY BZ 2.0 HDi 95 1999-2006 |
| Citroen Jumpy Van BS BT BY BZ 2.0i 16V 2000-2006 |
| Fiat Scudo Bus 220 1.6L 1996-2006 |
| Fiat Scudo Bus 220 1.9D 1996-2006 |
| Fiat Scudo Bus 220 1.9TD ECO 1996-2006 |
| Fiat Scudo Bus 220 1.9TD 1996-2006 |
| Fiat Scudo Bus 220 2.0L 16V 2000-2006 |
| Fiat Scudo Bus 220 2.0 JTD 16V 1999-2006 |
| Fiat Scudo Bus 220 2.0 JTD 1999-2006 |
| Fiat Scudo Platform/Chassis 220 1.6L 1996-2006 |
| Fiat Scudo Platform/Chassis 220 1.9D 1998-2006 |
| Fiat Scudo Platform/Chassis 220 1.9TD 1996-2006 |
| Fiat Scudo Platform/Chassis 220 2.0 JTD 16V 1999-2006 |
| Fiat Scudo Platform/Chassis 220 2.0 JTD 1999-2006 |
| Fiat Scudo Van 220 1.6L 1996-2006 |
| Fiat Scudo Van 220 1.9D 1998-2006 |
| Fiat Scudo Van 220 1.9TD 1996-2006 |
| Fiat Scudo Van 220 2.0 JTD 16V 1999-2006 |
| Fiat Scudo Van 220 2.0 JTD 1999-2006 |
| Fiat Scudo Van 220 2.0L 2000-2006 |
| Fiat Ulysse 220 1.8L 1997-2002 |
| Fiat Ulysse 220 1.9TD 1995-2002 |
| Fiat Ulysse 220 2.0L 1994-2002 |
| Fiat Ulysse 220 2.0L 16V 1998-2000 |
| Fiat Ulysse 220 2.0 JTD 1999-2002 |
| Fiat Ulysse 220 2.0L Turbo 1994-2002 |
| Fiat Ulysse 220 2.1 TD 1996-1999 |
| Lancia Zeta 22 2.0L 16V 1998-2002 |
| Lancia Zeta 22 2.0 JTD 1999-2002 |
| Lancia Zeta 22 2.0 JTD 16V 2001-2003 |
| Lancia Zeta 22 2.0L Turbo 1995-2002 |
| Lancia Zeta 22 2.1 TD 1996-1999 |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| VALEO Europe | 731166 |
| VALEO Europe | 731168 |
| VALEO Europe | 732692 |
| DENSO Europe | DRM07050 |
| DENSO Europe | DRM07055 |
| NRF | 58262 |
| NRF | 58958 |
| NRF | 58993 |
| AKS DASIS | 060570N |
| AKS DASIS | 060650N |
| AKS DASIS | 060660N |
| AKS DASIS | 160021N |
| AVA QUALITY COOLING | CNA2078 |
| AVA QUALITY COOLING | CNA2079 |
| AVA QUALITY COOLING | CNA2089 |
| AVA QUALITY COOLING | CNA2208 |
| NISSENS Number | 61875A |
OEM Part Number:
| 1301P2 |
| 1301P3 |
| 1301W1 |
| 1301W2 |
| 1301W4 |
| 1301W5 |
| 1301W7 |
| 1301Y4 |
| 1301Y6 |
| 1301Y7 |
| 1301Y9 |
| 1301Z0 |
| 1301Z2 |
| 1301LV |
| 1301LW |
| 1301LX |
| 1301NC |
| 1301NE |
| 1301PN |
| 1301PP |
| 1301PQ |
| 1301PV |
| 1301PW |
| 1301PX |
| 1301RF |
| 1301RG |
| 1301RH |
| 1301RN |
| 1301RP |
| 1301RQ |
| 1301RW |
| 1301RX |
| 1301SC |
| 1301SE |
| 1301SF |
| 1301SN |
| 1301W3 |
| 1301W6 |
| 1301Z1 |
| 133072 |
| 1330E3 |
| 1331ZW |
| 1331HE |
| 1331HF |
| 1331HG |
| 1331HH |
| 1331HJ |
| 1473910080 |
| 14744010080 |
| 1474401080 |
| 14744010 |
| 1475060080 |
| 1475844080 |
| 1475845080 |
| 1476529080 |
| 1482543080 |
| 1482546080 |
| 1489463080 |
| 1609537880 |
| 9159526480 |
| 9400243169 |
| 9567509680 |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
